Mach-E instrument cluster

Spearheaded creation of innovative dynamic instrument cluster visuals that re-imagines the traditional in-vehicle gauge designs. Using lateral and longitudinal inputs from the vehicle, Mach-E was the first vehicle on the road to visualize this driving behavior in the abstract visualizations that compliments the spirit of electric Mustang.

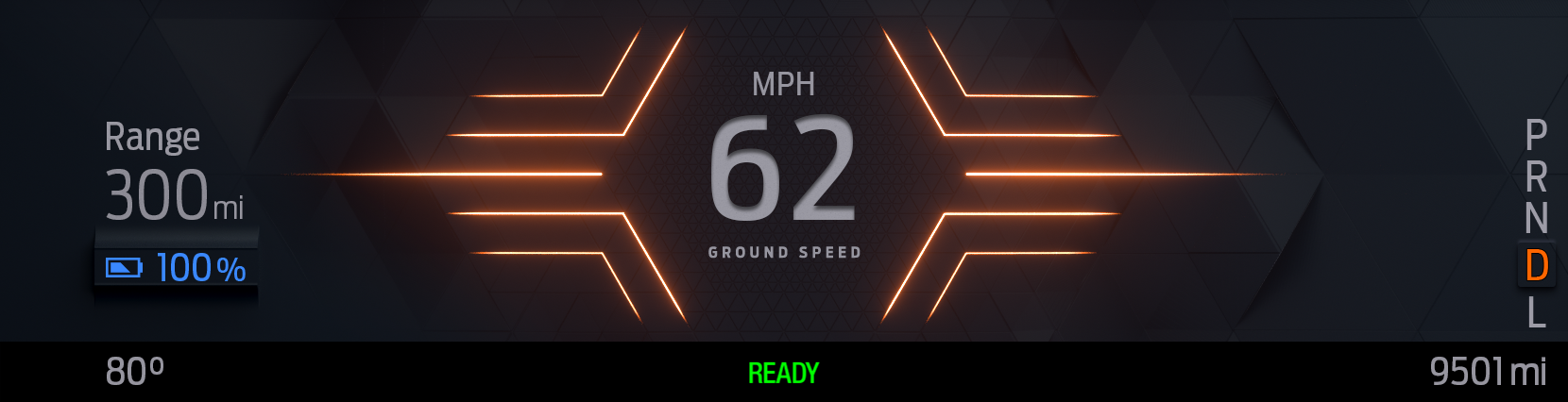

Acceleration is displayed abstractly on the "Unbridle" drive mode using the growing lines, while also indicating meaningful lateral movements during cornering

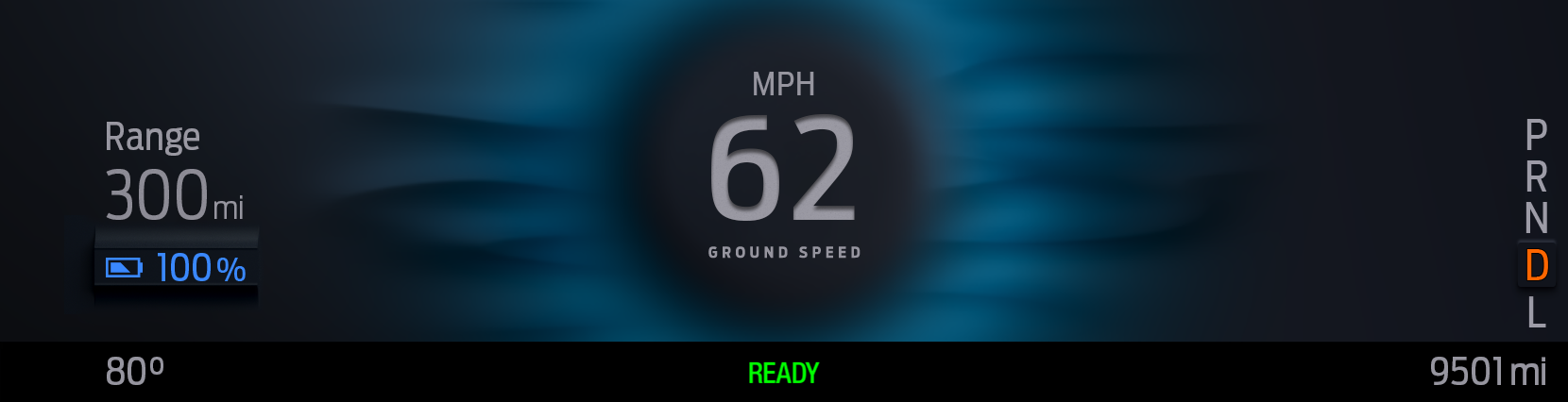

"Whisper" drive mode rewards the driver by visualizing glow when the speed is constant

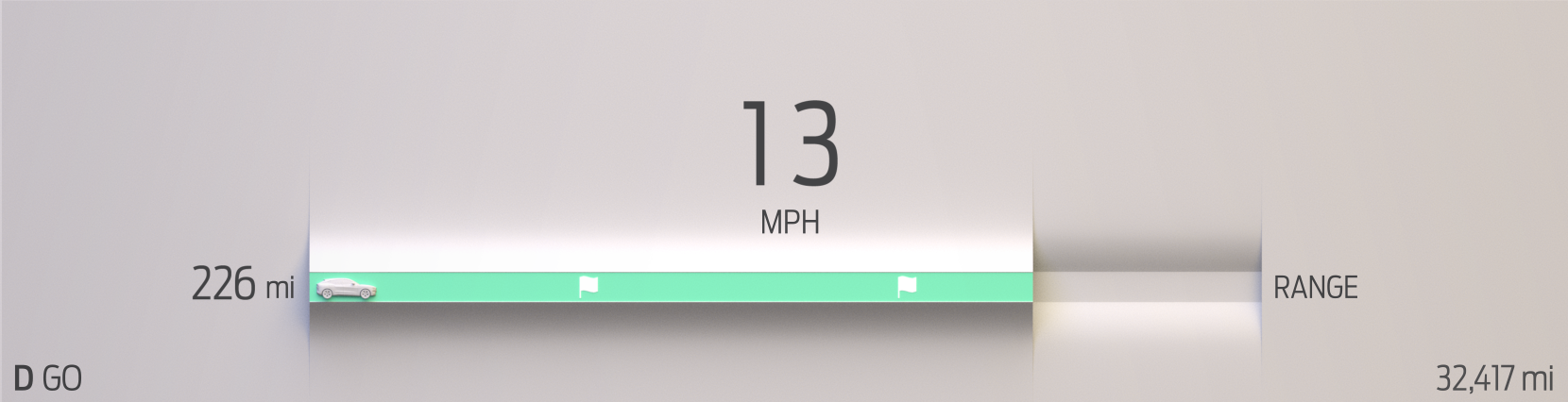

Early concept of state of charge bar on the "engage" drive mode
User journey that showcases the craft that went into each motion, transition and detail for various states of the driving experiences
Engage drive mode
Whisper drive mode
Unbridle drive mode
